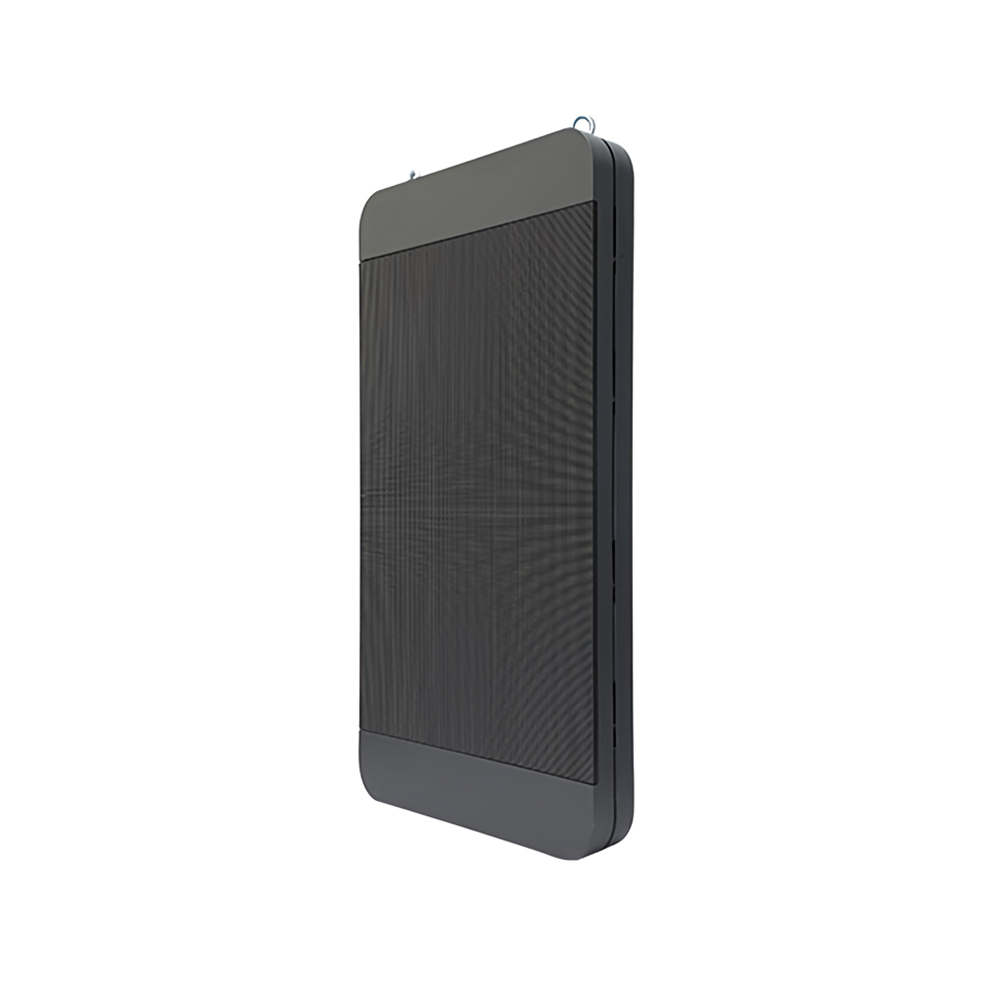

Led Screen Display outdoor for smart pole light
OVERVIEW
Functions and Characteristics
► Information interaction hub for better public services in smart city: release real-time information display of traffic conditions, weather forecasts, government announcements, advertisements, etc., supporting remote content update and sub-regional management.
► Cultural promotion: display city history and tourism information to enhance citizens' cultural experience.

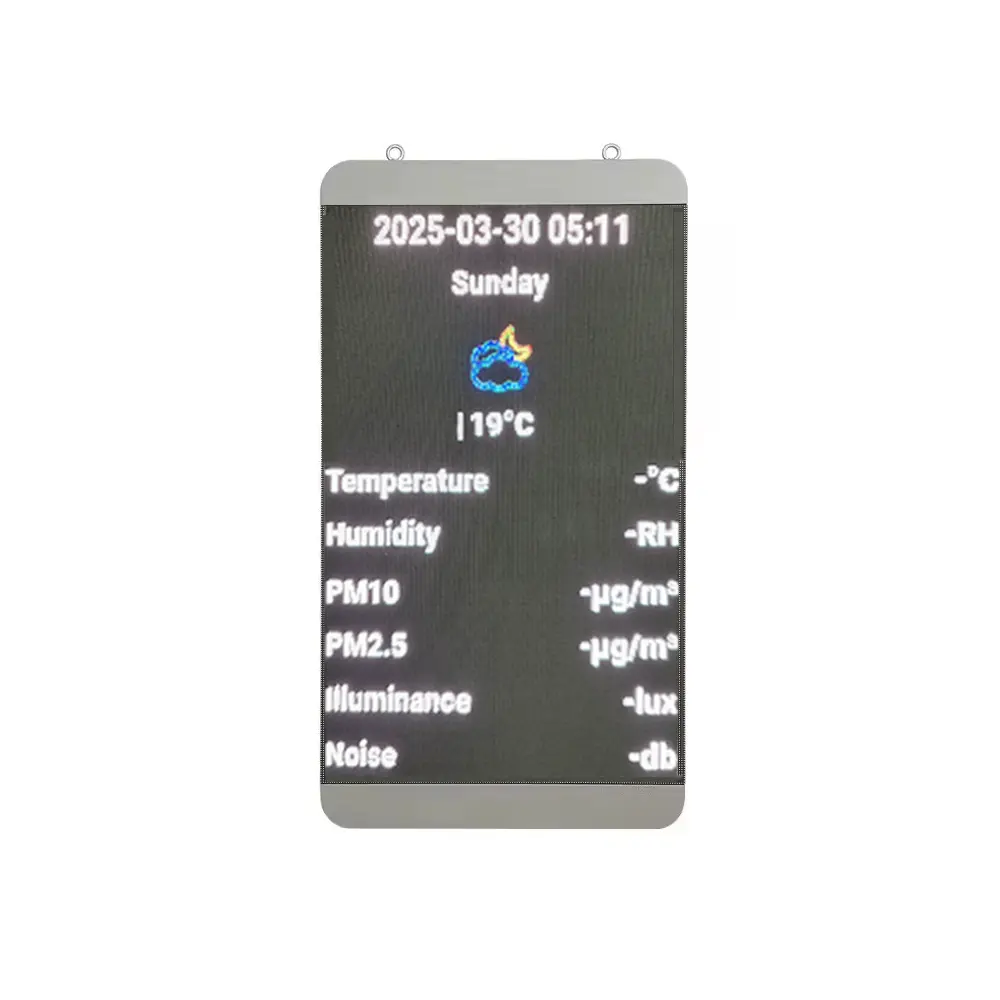

► Environmental awareness: integrating air quality, noise, temperature and humidity sensors, dynamically monitoring and displaying environmental data through C-Lux smart pole system
► Intelligent linkage: Collaborate with cameras, sensors, 5G base stations and other devices to support emergency warning, crowd statistics, parking guidance and other functions.
► Energy and space intensification: Smart pole led screen display is mounted on urban street light poles for rationalization of urban space
Datasheet
|
Outdoor Led Screen Display for Smart City Smart Pole |
|
|
pixel pitch |
P2.5/P3.84 |
|
Module Dimension |
200mm*200mm |
|
Display Size |
W600mm*H1200mm |
|
※Screen Size (Single Screen) |
W700mm *He1300mm *T100mm |
|
※Screen Size ( Double Screen) |
W700mm *He1300mm *T130mm |
|
Module pixels (dots) |
52 Dots * 52 Dots |
|
Screen pixels (dots) |
156Dots*312Dots |
|
White Balance Brightness |
6500-70000cd |
|
Protection Level |
IP65 |
|
Case Material |
Aluminum box |
|
G.Weight |
35kg(Single Screen),40kg( Double Screen) |
|
Adaptive Height for Light Pole |
6-8M |
|
Optimal Viewing Range |
3.84-50M |
|
Pixel Structure |
1 solid red 1 solid green 1 solid blue (full color) |
|
Pixel View |
Horizontal: +140°-140° Vertical: +140°-140° |
|
Pixel Dot Lifetime |
>100000Hours |
|
Module power supply |
AV220V to 5V DC power supply/3.8V for solar |
|
Working Voltage |
AC 220V ± 10%, 50HZ ± 5%/DC12V/DC24V |
|
Assembling Process |
Pixel pitch error <0.3mm, flatness <0.5mm |
|
Peak Power Consumption |
Wiring power 800w/sqm |
|
Average Power Consumption |
240W/sqm (AC220V) 80W/sqm(solar) |
|
Installation Process |
Inter-module flatness <1mm |
|
Point of Controllability |
>9999/10000 |
|
Maximum Contrast Ratio |
>3000:1 |
|
Screen Lifespan |
>100000Hours |
|
Mean Time Between Failures (MTBF) |
>10000Hours |
|
※Protection Technology |
Anti-static, short circuit, lightning, moisture, dust, corrosion,
anti-electromagnetic interference, while the electrical appliances have over-current, over-voltage, under-voltage, broken circuit, over-temperature protection function |
|
※Safety Testing |
Temperature rise test: respectively in the rated voltage of 0.9 times and 1.1 under the test, and adjusted to the full-white state, the natural room temperature of 22 ℃, in the full-white state stabilized for 1 hour after the temperature rise does not exceed 55 ℃ |
|
※ Environmental Adaptability Testing |
Vibration test: under the condition of vibration frequency 5HZ-55HZ-5HZ amplitude 0.9MM, a scanning of 5MIN, mutually perpendicular to the two axes are scanned twice each. |
| Anti-blocking test: PCB boards, unit plastic panels meet V-0 level. | |
| Salt spray test test: in 35 ℃ / 5% concentration environment for 24H surface corrosion-free: in line with GB4943.1-2011 standards | |
| Constant humidity and heat test: display use environment 50 ℃, relative humidity 90% operation 48H | |
| High and low temperature test: test chamber temperature 85 ℃, negative 450 ℃ each running 24H | |
|
Material - Fan |
Customized-Temperature Controlled Smart Fan |
|
Material-Wire |
Customized-Pure Copper Colored Wire |
|
Material - Power Supply |
Customized-High Temperature Power Supplies |
|
system control |
Smart Pole system control |
