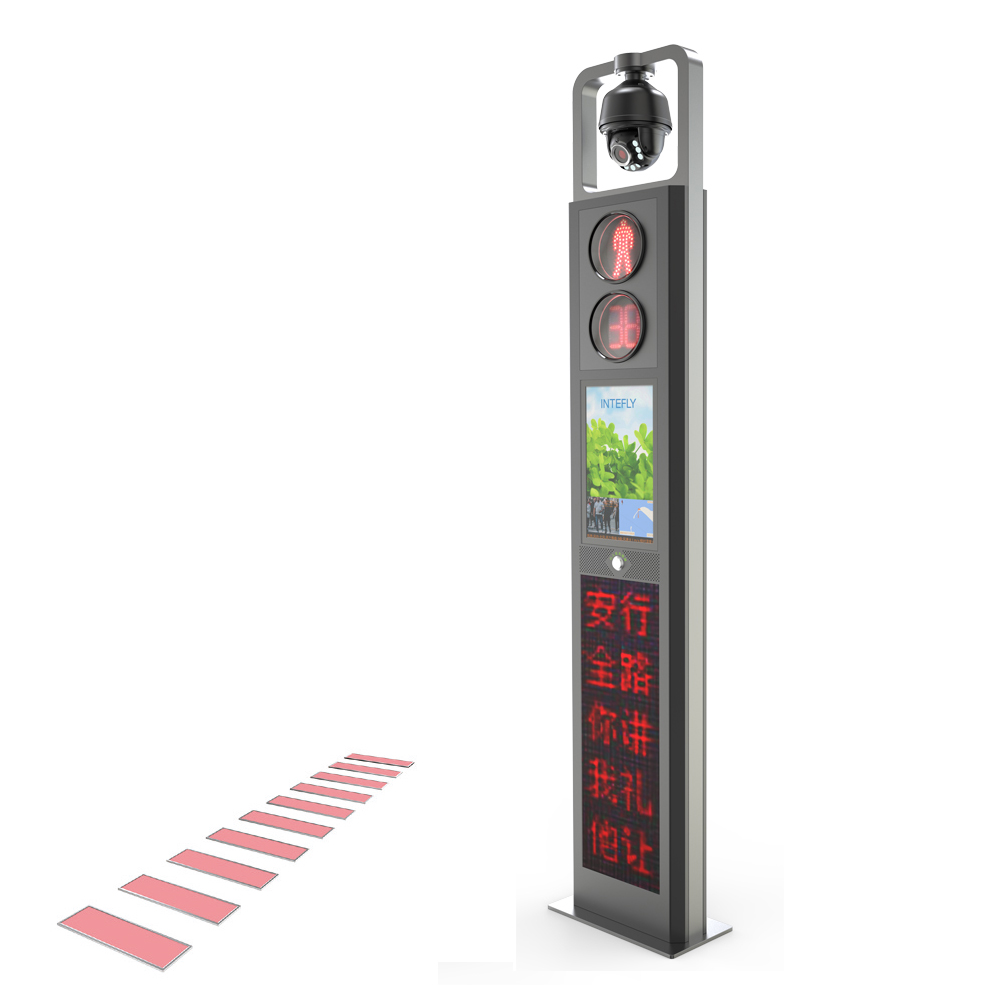

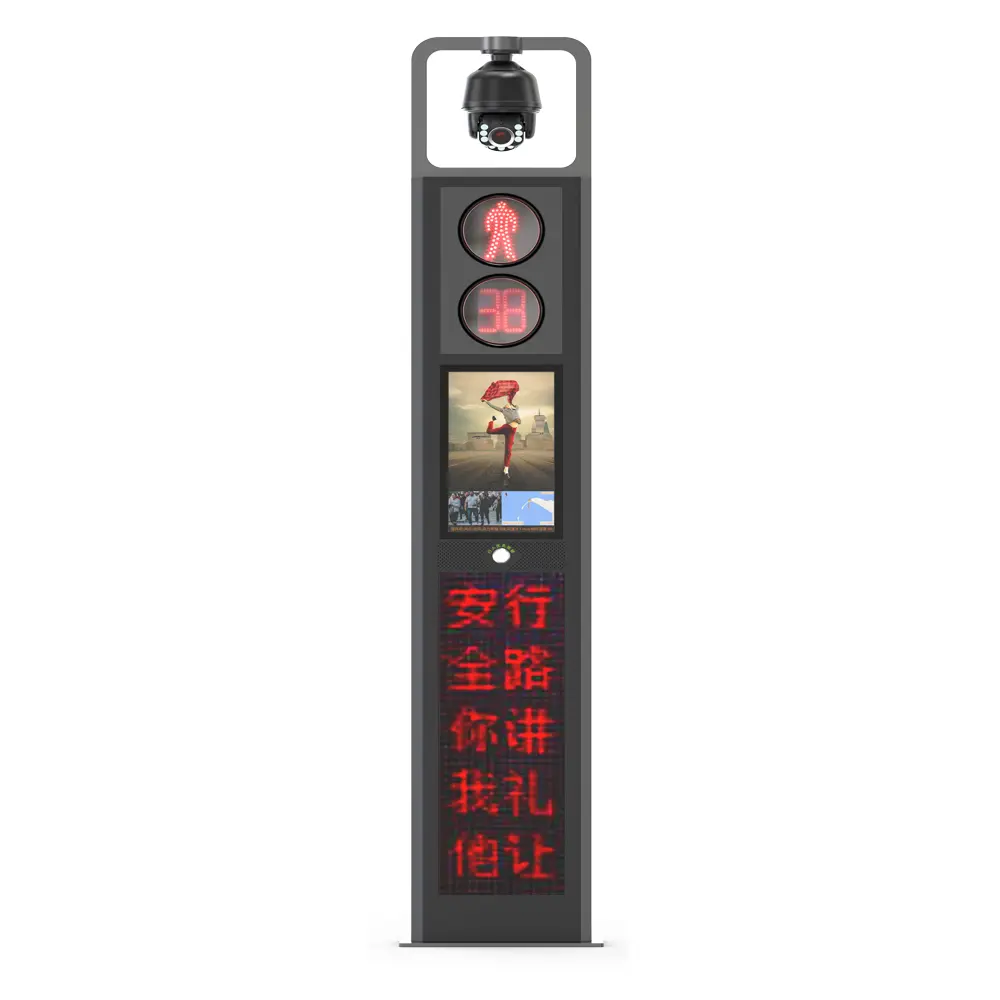

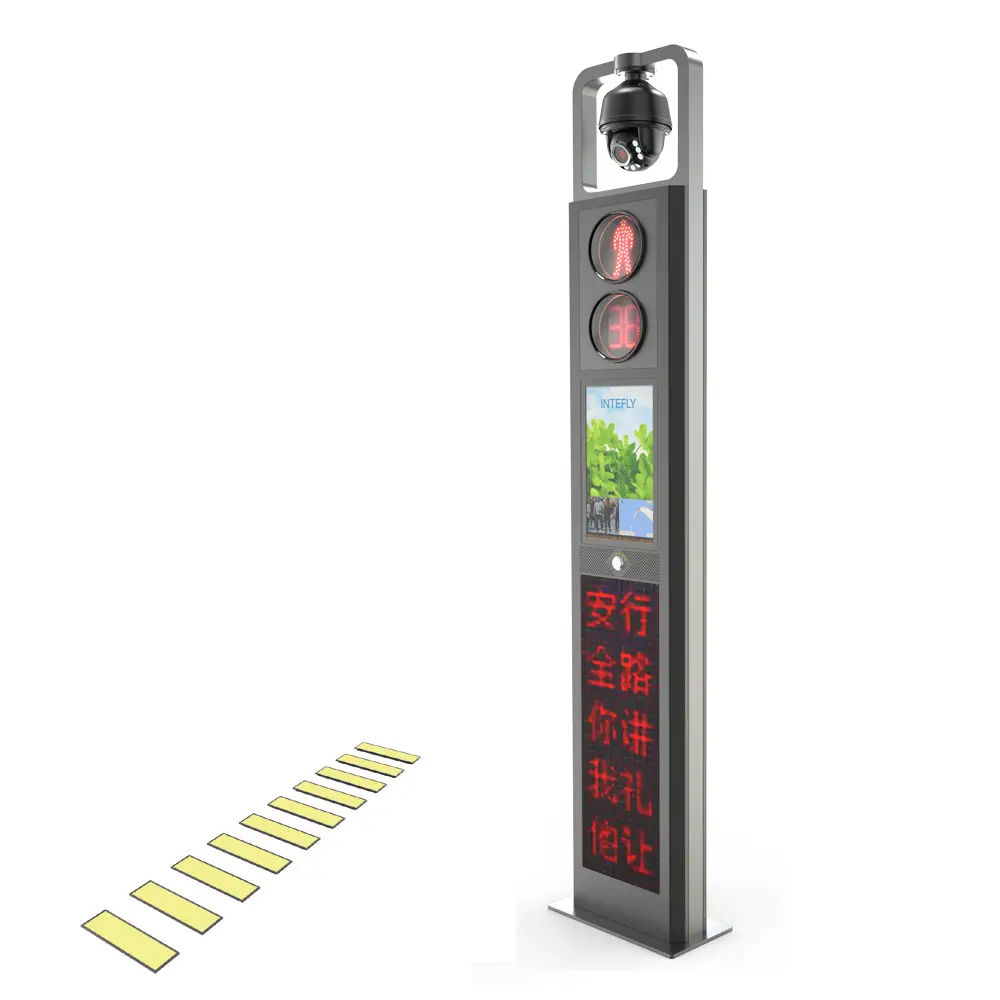

Smart pedestrian traffic pole CSP10
Overview
Smart Crosswalk traffic light CSP10
Smart pedestrian traffic light CSP10 is smart traffic light system of smart city with newest technology that combines CCTV camera, traffic lighting Time-Counting lighting.Speaker, LCD screen display, LED screen, one key pedestrian priority, red/green/yellow flashing ground lighting, body PIR sensor, 4G/WiFi/GPRS antenna, etc different and advanced function and configuration. It is civilized experience of smart city to ensure safety of civil and well being of city. Under installation the side of zebra-crossing, smart crossing traffic light CSP10 is a smart city information collection terminal and a convenient service terminal by using IOT and internet technology. This smart traffic lighting CSP10 not only encourages more people to walk and to help reduce accidents, encourages safe crossing for pedestrians in line with the RTA’s Safe and Smooth Transport for All programme. but also it is a interactive terminal of information between city and peoples,enhances the image of smart city, improves safety of smart city.
General
| Volt | AC100-240v | Power | 156w |
| Body Materials | Stainless steel,Powder coating | Size | 2700*460*150mm |
| G.W | 95kg | Heating dissipation | Air cooling |
| Door | With lock | Installation | Anchor fixed |
Traffic Lighting
Red lighting( Pedestrian wait)&Green lighting(Pedestrian pass)
It is basic and essential function of smart traffic light to guide pedestrian pass or wait,then make sure pedestrian safety.
| Volt | DC7V,0.58A | Power | 7W |
| Size | Θ300mm | Lighting time | 30seconds(others time can be set) |
Time-counting Light
To show how long that pedestrian pass or wait
| Volt | DC7v,058A | Power | 7w |
| Size | Θ300mm | Lighting time | 30seconds(others time can be set) |
CCTV Camera
By adding this devices in smart traffic crossing light, it can monitor surrounding including people,cars,etc, to enhance the feeling of safety.
| Electric parameter | DC8-15v, 18w | Pixel | 300w |
| Sensor | 1/2.8”cmos, | HD resolution | 1980*1080P |
| Focal length | 4.72*94.4mm | Angle | Max 70° |
| Monitoring distance | 0-200m (daytime) | Optical zoom | 20X |
| PTZ | Yes | Horizontal | 350° |
| Vertical | 85° | Size | 6’ 304*210mm |
LCD Screen Display
It is an advanced function of smart crosswalk light. It can play some video such like city campaign,city civilization,even advertising
| Screen size | 21.5’/293*496mm | Screen Type | LCD screen, TFT |
| Screen display ratio | 16:9 | HD resolution | 1980*1080P |
| Visual angle | 178/178 | Color spectrum | 16.7m |
| Brightness | ≥2000CD(sunshine visual) | Electric parameter | Backlite 12V, display5V, 40W |
| Working temperature | -20℃~+65℃ |
Led Screen Display
It is an important function of smart traffic lighting. It can display safe reminders.
| Screen Size | 320*960mm | Screen Type | LED, single led,P10 |
| Resolution | 32*96 | Best perspective | Horizontal 70°~90°, Vertical40° |
| Brightness | ≥1800cd | Brightness adjustable | No |
| Best visual distance | 10-100m | Led | 16*30*6=3072 pot |
| Led space | P10 | Electric parameter | 5V, 135W |
| Working temperature | -40℃~+85℃ | Module size | 320*160*19mm |
Flashing ground lighting
(Red&Green flashing ground lighting)
| Electric parameter | 24V, 0.4A, 10W | Size | 300*100*80mm |
| Lighting transmitting medium | High tensile temper glass | Work | Flashing to zebra-cross |
Flashing ground lighting
(Yellow flashing ground lighting)
| Electric parameter | 24V, 0.4A, 10W | Size | 300*100*80mm |
| Lighting transmitting medium | High tensile temper glass | Work | Flashing to zebra-cross |
Speaker
C-Lux smart traffic lighting pole CSP10 offers a MAX 15W integrated weatherproof public address sound system dedicated to outdoor spaces. It can be used to broadcast advertisements, public service announcements, music or a local radio station for specific events to create a convivial ambiance.
| Impedance | 4Ω | Power | 15w |
| Response Frequency | 100-20000Hz | Size | 4’ |
Body PIR Sensor
This function is optional to detect pedestrian come and to decide the speaker work or not.
Smart traffic lights CSP10 provides Best solution of crosswalk by filling with multiple technologies including security,traffic lighting,screen display, speakers,PIR sensor,etc different to integration with an C-Lux smart traffic lighting systems.
