Smart Pole Light

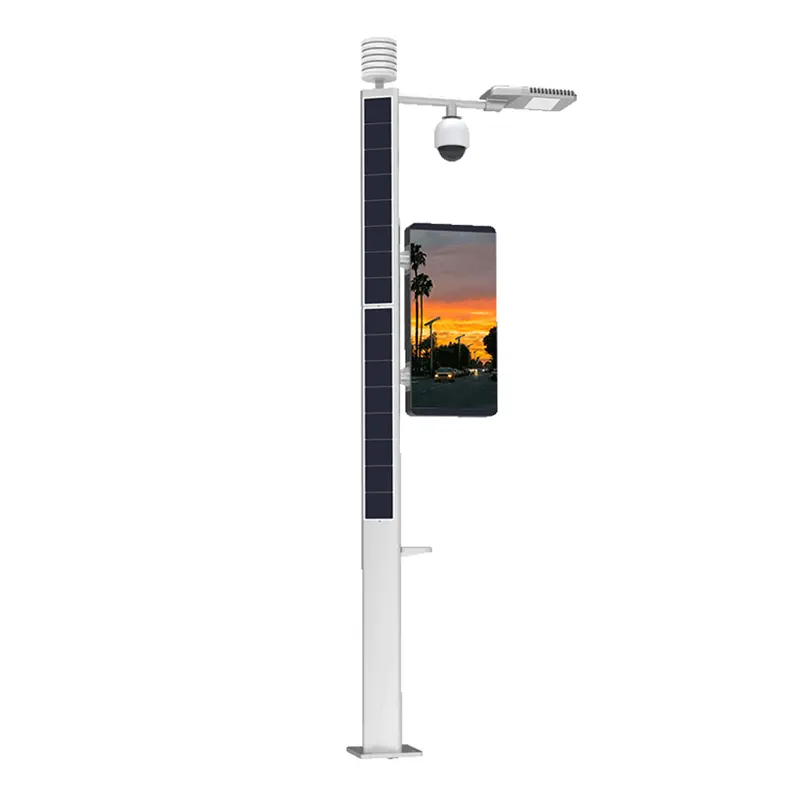

Solar smart pole CSP07

C-LUX Solar Smart Light Pole CSP07 is an innovative public infrastructure that combines solar-powered technology, smart lighting systems, environmental monitoring devices, traffic surveillance cameras, SoS intercom, Wi-Fi hotspots,and data transmission modules. This smart light pole converts solar energy into electricity through solar photovoltaic panels to power lighting and other smart devices. Its built-in sensors and controllers enable smart controls such as automatic brightness adjustment and remote switching. In addition, it may also integrate a variety of smart devices such as Wi-Fi hotspots, environmental monitoring sensors and traffic monitoring cameras to provide real-time data support for urban management and enhance the level of intelligence in urban public lighting and the efficiency of urban management.

Thanks to its solar powered and IoT technology , it is a perfect solution of infrastructure that installed in rural,Parks and scenic spots,Industrial parks,Residential community,etc

►Green energy with solar power supply to build lower carbon smart city
► No need AC220V/110V electric supply,Lower cost and easy installation
► Cost-saving
► Seamless multi-functional integration of urban hardware in a refined light pole Display screen,CCTV camera,Mobile charger,air senor,lighting,etc
► Easy installation
► Fully connected platform
► IP66 weather condition
► Corrosion resistant coating for seaside application
► Cost-effective and efficient lighting solution for a fast return on investment
► CB.CE.SAA,RoHS,ETL certificated

product details

product tags

Overview

Solar Smart Light Poles CSP07 are an advanced lighting solution that uses solar energy to power LED lights while incorporating IoT technology for enhanced functionality. Designed to be self-sufficient, smart solar light poles harness the sun’s energy through integrated photovoltaic panels. It are equipped with smart sensors and connectivity features that allow them to communicate with other devices and systems within the framework of a smart city. The combination of renewable energy and smart technology makes solar smart light poles an essential component of modern urban infrastructure.

Pre-configuration function for choosing as per projects need

Datasheet

►General:

Smart Pole light will be suggested to make different heights as per different scenarios.

Height	6/8M(customized)
Pole Diameter	₵130/170/200/219mm
Pole Material	Cold-rolled steel Q235/Aluminum
Protector	Polycarbonate,hot dip galvanized processing inside
Stand Color	Grey sanded/Red/Green/other
Tightness Level	IP66
Impact Resistance	IK09（Polyester）
Working Volt:	DC12V
Marked Power:	260W
Working Temp.:	-30℃to +50℃ /-22℉ to +122℉ (with wind effect)
	-30℃ to +40℃ /-22℉ to +104℉ (without wind effect)

Strong Solar Panel and Big battery------ Sustainability and long-lasting

Designed by Solar panels integrated into the pole, it make solar smart pole CSP07 more liner and aesthetic in visual. To be important, solar panel provide electrical power to smart devices in smart pole by self-generated, It offers better solution for the area of weak electrical facilities or for reducing electricity cost.

Solar panel type	Mono crystalline silicon
Solar panel voltage	DC18V
Solar panel power	1600W
Battery type	LiFePo4 Battery
Battery voltage	DC12.8V
Battery capacity	550Ah
Durable working time	2-3 cloudy or raining days

Smart Solar streetlight -------High luminous efficacy210lm/w+& smart controlling, senor for saving-energy

Due to solar panel powered, Solar Smart pole light CSP07 deliveries highly efficient luminous efficacy output up to 210lm/w per watt to reduce power consumption. Also it adopts smart streetlights and sensor technology to reach out adaptive lighting on demands to ensure reduction of light waste and make solar smart pole light CSP07 work long-lasting and energy-saving for ensure other smart devices work very well.

Power	50W
Control	LoraWan/4G/PLC/Mesh/Sensor optional
Driver	DaLi2/0-10V
CCT	3000K/4000K/5000K/6000K/3000K-6000K
CRI	70+/80+
Lighting effect:	210lm/w+
Beam angle	120°/120°*50°/T2/T3/T4
Led Chip	Osram /Philips SMD 3030 /5050
Dimming:	0-100%
Timing	Yes
PF	>0.9
Protection	Over-voltage protection,over-current protection and anti-surge 10KV

LED Screen Display----energy-saving powered by solar

Solar smart light pole light bring a prefect solution of energy-saving led screen for Solar power supply with 55’big size. Not only as advertisement and broadcast announcements,It is also a new type of media information platform with the primary presentation method of audio, animation, pictures, text, etc. To show information about buildings or scenic spots to the guests, to solve the problems of passenger flow guidance, information lag, route guidance, etc. The electronic guide system is integrated into the smart pole system, and it enhances the information spreading and interaction for more convenience

Size	640*1280mm,55inch
Screen Type	led screen
Pixel Resolution	P4
View Angle	+120°~120°
Display color	262K (6bits)/16.2M (8bits) colors
Brightness	5000-5500cd sunshine display screen
Power	103W (average)
Size	1492285mm
Side	Single side/double side(led+lightbox)
TF card	64G standard,128/256/512 optional TF card
Heat dissipation	Fan
Built-In speaker	Ω,10W（max20W),4inch（105mm）
Alarm song	≈97dB,(in vacancy 1 m)

Connectivity with Wi-Fi Ap&4G/5G Base Station -------Stay connected at all times

With the integration of the Wi-Fi AP module inside the smart Pole light CSP01, It brings a robust and fast internet connection for outdoor public areas to make people stay connected through mobile, iPad, and computer during 150m~400m. Designed to provide internet in outdoor spaces, smart pole CSP01 also offers telecom operators the possibility to acquire sites to deploy 4G/5G in cities because of the WLAN modules built-in

Core chip	QCA9531+QCA9887 750Mbps
Communication Standard	2.4G:300M 802.11b/g/n 5.8G:900M 802.11a/n/ac MIMO Technology
RAM	128MB DDR RAM
Flash memory	16MB
Interface	RJ45 10/100/1000M
Power	< 20 w
Antenna	2 dual-band 8dBi (or 10/13dBi omnidirectional)
Transmission Power	Max 20dbm
EVM	802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB 802.11a: ≤-25 DB

Camera CCTV /Security-------Create a sense of safety

In view of the optimal use of urban space, security modules is better by adding in smart pole light CSP01, not only it can reduce reduce crime, deter unwanted behaviour in public areas and increase the feeling of safety, but also it can monitor spaces while emergency time occurs.

Image Sensor	1/2.8" CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.001lux@ (F1.6, AGC ON), BW: 0lux with IR
Pixels	500W
Day & Night	IR Cut Filter with Auto Switch
Optical Zoom	23X
Digital Zoom	16X

SOS intercom

As the primary carrier of the smart city, the smart light poles are equipped with visual intercom and one-key alarm devices. It has an emergency alarm button at the front side with a design of a red flashing background light and a mechanical alarm button. While triggering the alarm button for help, the red ring-shaped background light flashes, and alarms deter prisoners. The emergency alarm button has apparent signs of the emergency alarm. It's easy to make people recognize. When an emergency occurs or the a need for consultation or help, press the call button to talk to the duty officer in the monitoring center immediately, and the duty officer can know the situation happening through camera and broadcasting, two-way talks

Operation	One-Key Button call
Interface	RJ45 10/100Mbps
Communication	TCP/IP
Auto Sampling	8kHz～44.1kHz,16bit,8Kbps～320Kbps
MIC	10mV/1000Ω,40Hz～20KHz
Power	≤30W

Loudspeakers

C-Lux smart pole CSP01 offers a MAX 20W integrated weatherproof public address sound system dedicated to outdoor spaces. It can broadcast advertisements, public service announcements, music, or a local radio station for specific events to create a convivial ambiance.

Interface	RJ45 10M/100M/1000M
Network protocols	TCP/IP
Audio format	MP3/AAC
Frequency bandwidth	9-16KHz
SNR	93B
Power	20W
Installation	Built-In

Weather station/ Air quality sensor

Timely knowledge of weather conditions is crucial for both city management and the public. Smart pole CSP03 is configured with weather monitoring feature.It can provides real-time data on temperature, humidity, air quality and precipitation. To be important. This information can be showed at the screen display to inform public. It not only aids in urban planning and resource management, but also enables residents to make informed decisions based on current weather conditions.

Parameters	Range	Resolution	Precision	Unit
Temperature	-40-80	0.1	±0.2	℃
Humidity	0-100	0.1	±3	%RH
Wind speed	0-60	0.1	±0.3	m/s
Wind direction	16	1	-	-
CO2	0-5000	1	±50+3%	ppm
PM2.5	0-999	1	±10F.s	Ug/m3
PM10	0-999	1	±10F.s	Ug/m3
barometric pressure	10-1200	0.01	±0.1	mbar
Illuminance	0-200000	1	±7%	Lux
O2	0-30	0.1	±3F.s	%
Ammonia	0-100	0.01	±3F.s	ppm
sulfuretted hydrogen	0-100	0.1	±3F.s	ppm
Noise	30-130	0.1	±1.5	dB

USB charger/Wireless charger

Smart pole CSP01 is a convenient platform that is not only provision of WI-FI signal for internet access, also it can charge your mobile through USB interface or wireless charging panel.
