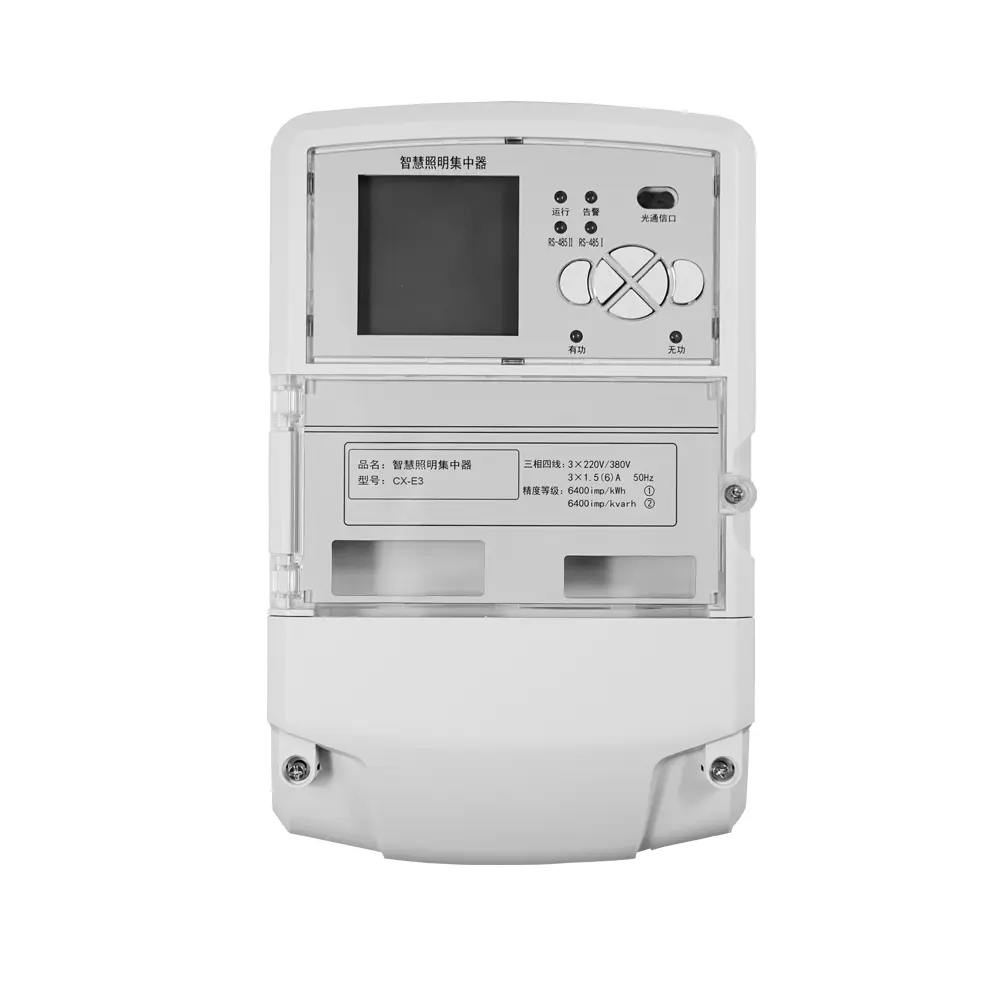

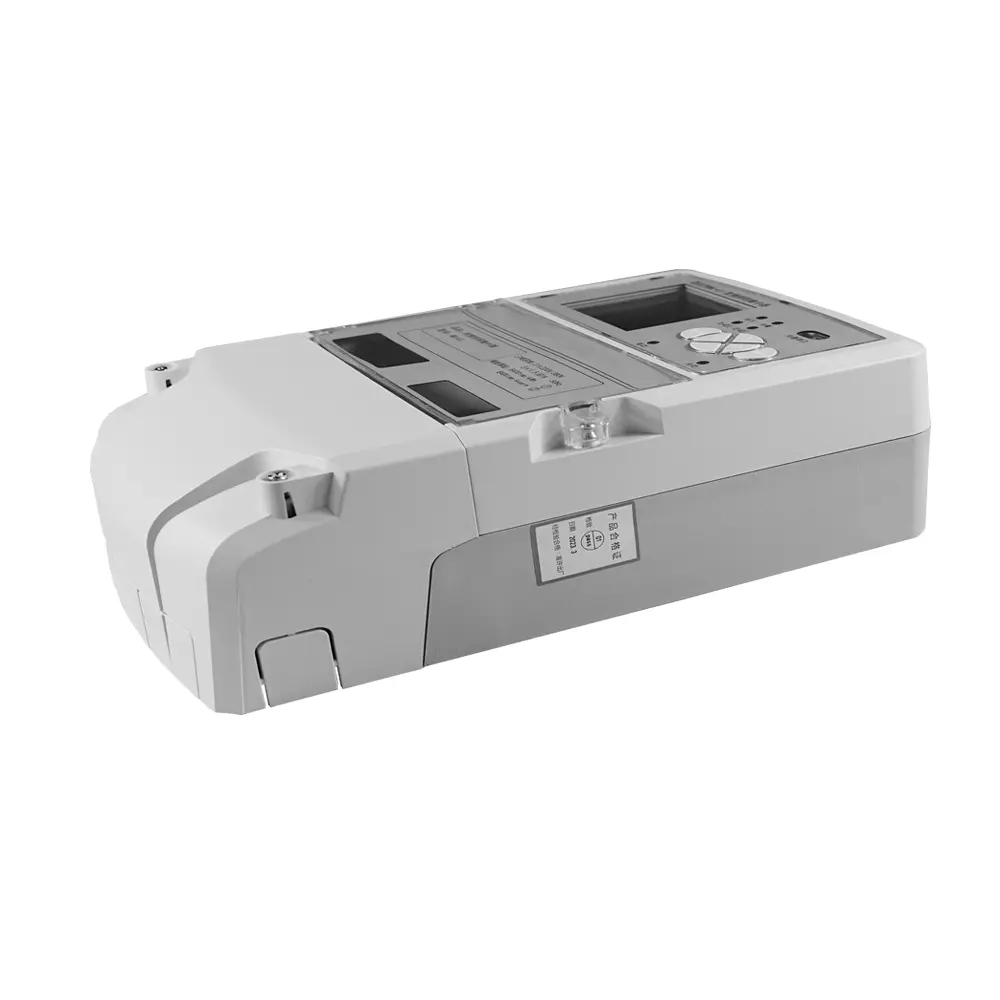

Smart Lighting Controller

PLC-IoT Gateway for C-Lux Gen2 smart street light management system

C-Lux Intelligent Lighting Concentrator is a communication transmitting hub connecting PLC-IoT streetlight controller into the server and C-LUX smart streetlight central management system with adopting the latest PLC-IOT communication technology to communicating management, data transmission, protocol conversion, and data processing and forwarding, to make ensure urban street lighting under intelligent controlling and managing anytime,anywhere conveniently for users.

● Feature and benefit:

► Wired solution by power line(no any other signal wires): The latest generation of PLC-IOT communication technology, external LD, stronger signals, longer distance

more distance;

► High-speed 32-bit ARM and Linux operating system

► Open IoT communication standard for Smart City Ready

► Stability:support re-connection after disconnection, abnormal recovery and system self-monitoring, ensuring real-time online equipment and normal system operation;

► Extremely high security: adopts Modbus encryption algorithm to ensure communication security and prevent data leakage;

► Communication distance: the maximum point-to-point communication distance reaches 6 kilometers;

► Networking: supports Mesh networking technology

► supports up to 499 fixtures

► IP52 Outdoor Design for putting in power cabinet.

► OTA remote upgrade support

product details

product tags

Overview

PLC-IoT gateway for smart street lights in smart cities

Designed with standard of state grid concentrator, the terminal of C-Lux PLC smart street Light concentrator has excellent electromagnetic compatibility performance.

The terminal has excellent electromagnetic compatibility performance, which can resist the interference of high-voltage spike pulse, strong magnetic field, strong static electricity, lightning surge, and has strong temperature self-adaptation capability.

Sealed design, ABS waterproof and flame retardant materials, wall-mounted structure, light volume, easy to install.

Feature and Function:

► Remote control for smart city platform

► Local setting control by button

►Connect and control smart controller,Loop Controller,smart sensor, other 485 devices

► Rich function : Individual control,group control,master control,dimming,on/off,timing,data collection,O&M

► Networking: Supports Mesh networking technology

► Bandwidth: Supports up to 499 fixtures

► Communication range: Point-to-point communication up to 2 kilometers

► High security: Adopt Modbus encryption algorithm to ensure communication security and prevent data leakage

►Strong stability: support disconnection reconnection, abnormal recovery, system self-monitoring, to ensure real-time online equipment and normal operation of the system

Datasheet

PLC-loT Gateway of smart streetlight for C-LUX Gen2 smart street light management system
Input Voltage	3 * 220V/380V
Current	3 * 1.5A
Working temperature	-40~80℃
Interface	Cat1+Lan+RS485(2)+RS282+USB+Infrared
Network	mesh
Waterproof	IP52 for putting in power cabinet
Working bands	2.412 GHz~2.472 GHz&4G
Transmitting power	LTE:23dBm±2dB UMTS:24dBm+1/-3dB EDGE 850/900MHz:27dBm±3dB EDGE 1800/1900MHz:26dBm±3dB GSM 850/900MHz:33dBm±2dB GSM 1800/1900MHz:30dBm±2dB
Receiving sensitivity	＞-88dBm
Communication distance	Urban:5Km；Suburban:15Km
Signal input	LAN,2G/3G/4G
Data protocol	UDP/TCP/MQTT
LoRa antennae	T-NC Female Connector
Cat1 antennae	T-NC Female Connector
