Smart street pole light CSP08

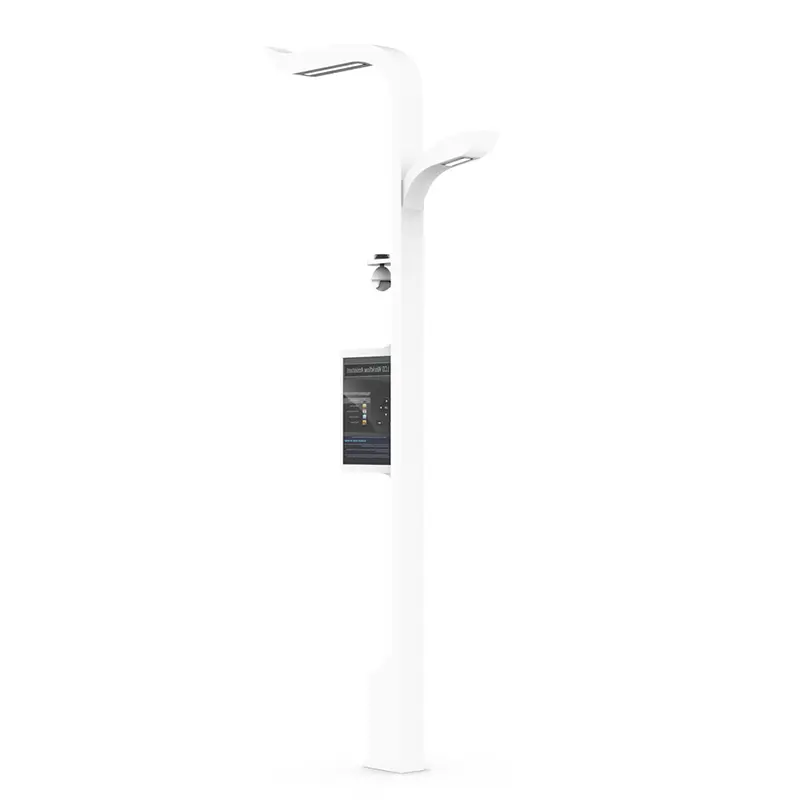

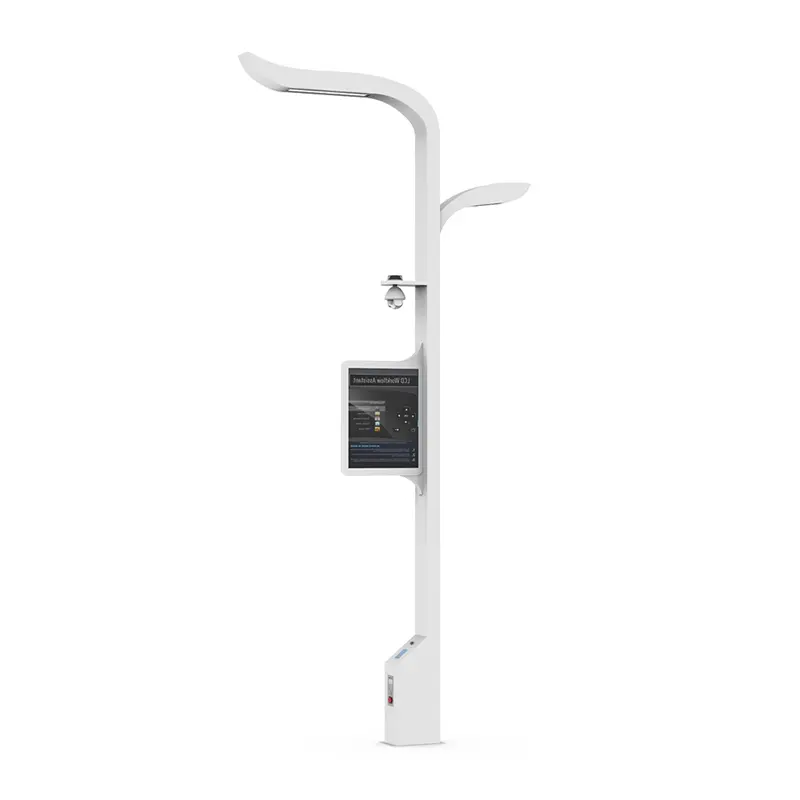

C-LUX Smart street pole light CSP08 is an advanced street lighting system that features two arms extending individually equipped with highly efficient LED streetlight from a central pole, This two- arm design not only provides enhanced lighting, but also integrates a variety of smart technologies. The system is embedded with Internet of Things (IoT) capabilities, which enables real-time data collection and communication. This smart light pole CSP08 integrated with a variety of functions and can be controlled by C-Lux smart city smart pole central management system including street lighting, surveillance, public broadcasting, emergency alarms, and even electric vehicle charging stations.

► Two arm design for enhancing lighting to two direction.
► Embedded with Internet of Things (IoT) capabilities and multi-function for smart city
► Easy installation
► Fully connected platform
► IP66 weather condition
► Corrosion resistant coating for seaside application
► Cost-effective and efficient lighting solution for a fast return on investment
► CB.CE.SAA,RoHS,ETL certificated

product details

product tags

Overview

C-Lux smart light pole CSP08 is more than just a street light, it is a multifunctional integrated smart light pole system that can meet the multiple needs of modern urban environments. With its innovative features, including IoT integration, high-definition cameras, public display screens and emergency response capabilities, this smart light pole is expected to revolutionize the way cities manage public safety, community engagement and energy efficiency. Thanks to its two arm- design and IoT multi-function, it can be applied in city streets and sidewalks,Public parks and recreational areas, it will be prefect smart city infrastructure.

Pre-configuration function for choosing as per projects need

Datasheet

►General:

Smart Pole light will be suggested to make different heights as per different scenarios.

Height	10/12/15M(customized)
Pole Material	Cold-rolled steel Q335
Protector	Polycarbonate,hot dip galvanized processing inside
Stand Color	Grey sanded/Red/Green/other
Tightness Level	IP66
Impact Resistance	IK09（Polyester）
Working Volt:	AC100V~250V/AC380VEV charger for
Marked Power:	180W+22KW(EV charger)
Working Temp.:	-30℃to +50℃ /-22℉ to +122℉ (with wind effect)
	-30℃ to +40℃ /-22℉ to +104℉ (without wind effect)

Lighting&Smart control------- Lighting on demands for two sides

Designed with two arms streetlight, it can illuminate in different directions, covering a wider range than a single-arm street light. For example, on wider roads, it can illuminate the motorway and sidewalk at the same time, reduce the blind spot of illumination, improve the uniformity of the overall brightness of the road, so that both pedestrians and vehicles can get good visual conditions at night, and improve the safety of outgoing.

Symmetrical Lighting Distribution

Asymmetrical Lighting Distribution

To be critical, smart pole light CSP08 provides options for smart illumination control, including timing on-off, dimming, groups, etc., different strategy controls, and sensor control.

Power	50/100W/150W
Control	LoraWan/4G/PLC/Mesh/Sensor optional
Driver	DaLi2/0-10V
CCT	3000K/4000K/5000K/6000K/3000K-6000K
CRI	70+/80+
Lighting effect:	100lm/w+
Beam angle	120°/50°*120°asymmetric
Led Chip	Osram /Philips SMD 3030 /5050
Dimming:	0-100%
Timing	Yes
PF	>0.9
Protection	Over-voltage protection,over-current protection and anti-surge 10KV

Connectivity with Wi-Fi Ap&4G/5G Base Station -------Stay connected at all times

With the integration of the Wi-Fi AP module inside the smart Pole light CSP08, It brings a robust and fast internet connection for outdoor public areas to make people stay connected through mobile, iPad, and computer during 150m~400m. Designed to provide internet in outdoor spaces, smart pole CSP01 also offers telecom operators the possibility to acquire sites to deploy 4G/5G in cities because of the WLAN modules built-in

Core chip	QCA9531+QCA9887 750Mbps
Communication Standard	2.4G:300M 802.11b/g/n 5.8G：900M 802.11a/n/ac MIMO Technology
RAM	128MB DDR RAM
Flash memory	16MB
Interface	RJ45 10/100/1000M
Power	< 20 w
Antenna	2 dual-band 8dBi (or 10/13dBi omnidirectional)
Transmission Power	Max 20dbm
EVM	802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB 802.11a: ≤-25 DB

Camera CCTV /Security1251AI algorithm recognition improve smart city management

Based on the application of urban road scene needs, Smart pole light CSP08 in hardware can be equipped with AI intelligent algorithm camera and AI data-processing smartbox. It makes smart pole CSP08 can identify the crowd, license plate, etc., with management of white list ,black list and the ability of some scenes of the intelligent recognition to facilitate the city to manage fast and effectively

Camera
Image Sensor	1/2.8" CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.001lux@ (F1.6, AGC ON), BW: 0lux with IR
Pixels	500W
Day & Night	IR Cut Filter with Auto Switch
Optical Zoom	23X
Digital Zoom	16X
Lens
Focal Length		5mm~115mm
Zoom Speed		<5s
Field of View		Horizontal filed of view: 58(w)~3.0°(t) Vertical filed of view: 39.7 (w)~2.2(t) Diagonal field of view:63.1°(w)~3.7(t)
Aperture Range		F1.6~F3.6
Focus Control		Auto/Manual
Iris Control		Auto
Close Focus stance		1 m‒3 m
Pan&Tilt
Pan Range		360°
Pan Speed		Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s
Tilt Range		-16°~90° (Default -3°~90°)
Tilt Speed		Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s

Network
Protocols	HTTP/HTTPS/TCP/UDP/UPnP/SNMP/DHCP/DNS/DDNS/Easy/DDNS/NTP/SMTP/SSL/802.1X/QoS/IPv4/IPv6/PPPOE/SSH/ Unicast/Multicast/RTMP/RTP/RTSP/NFS/SMB/CIFS/FTP
User/Host	Up to 32 users. 4 user levels

LED Screen Display

Smart pole light CSP08 offers a bigger LED screen size for better advertisement and broadcast announcements with the primary presentation method of audio, animation, pictures, text, etc. It can help residents and visitors show information about buildings or scenic spots to the guests to solve the problems of passenger flow guidance, information lag, route guidance, etc. The electronic guide system is integrated into the smart pole system, and it enhances the information spreading and interaction for more convenience

Screen Display Size	*8001600mm**
Screen Type	LED TFT interactive touch screen
Pixel Pitch	P3.846mm
View Angle	150°/150°
Display Color	16bit
Brightness	7000CD automatically adjustable
Power	200W
External Size	9001700105mm
Side	Single side(double side optional)
Full Screen Resolution	208*416
Heat dissipation	Fan
Built-In speaker	Ω,20W（max30W,4inch（105mm）
Alarm song	≈97dB,(in vacancy 1 m)

SOS intercom

As the primary carrier of the smart city, the smart light poles CSP08 are equipped with visual intercom and one-key alarm devices. It has an emergency alarm button at the front side with a design of a red flashing background light and a mechanical alarm button. While triggering the alarm button for help, the red ring-shaped background light flashes, and alarms deter prisoners. The emergency alarm button has apparent signs of the emergency alarm. It's easy to make people recognize. When an emergency occurs or the a need for consultation or help, press the call button to talk to the duty officer in the monitoring center immediately, and the duty officer can know the situation happening through camera and broadcasting, two-way talks

Operation	One-Key Button call
Interface	RJ45 10/100Mbps
Communication	TCP/IP
Auto Sampling	8kHz～44.1kHz,16bit,8Kbps～320Kbps
MIC	10mV/1000Ω,40Hz～20KHz
Power	≤30W

EV Charger for mobility-----Promote a more sustainable form of mobility

As electric vehicles are growing fast along with the need for greener mobility, C-Lux CSP08 can incorporate an advanced AC charging pile with a European socket (type 2) or a Japan/American Socket(Type 2) to offer an e-mobility solution. Seamlessly integrated into the smart pole, the light ring in the smart pole light CSP01 can be combined to indicate the charging status by switching from one color to another. Meanwhile, it supports OCPP1.6 charging protocols to an integrated solution for access authentification via an RFID or QR code, communication, and metering for e-mobility operation.

Input Volt:	AC220-250V/AC380V
Max Output Current:	32A
Max Output Power:	7KW(AC220-250V)/22KW(AC380V)
Working Temperature:	-25℃~50℃
Management:	Intelligent data management, monitoring and storage of various charging data
Protection:	Over-voltage,low-voltage,over-current,short-circuit,leakage,lightning proof,overheating,alarm,etc.

Loudspeakers

C-Lux smart pole CSP08 offers a MAX 20W integrated weatherproof public address sound system dedicated to outdoor spaces. It can broadcast advertisements, public service announcements, music, or a local radio station for specific events to create a convivial ambiance.

Interface	RJ45 10M/100M/1000M
Network protocols	TCP/IP
Audio format	MP3/AAC
Frequency bandwidth	9-16KHz
SNR	93B
Power	20W
Installation	Built-In

Weather station/ Air quality sensor

Timely knowledge of weather conditions is crucial for both city management and the public. Smart pole CSP03 is configured with weather monitoring feature.It can provides real-time data on temperature, humidity, air quality and precipitation. To be important. This information can be showed at the screen display to inform public. It not only aids in urban planning and resource management, but also enables residents to make informed decisions based on current weather conditions.

Parameters	Range	Resolution	Precision	Unit
Temperature	-40-80	0.1	±0.2	℃
Humidity	0-100	0.1	±3	%RH
Wind speed	0-60	0.1	±0.3	m/s
Wind direction	16	1	-	-
CO2	0-5000	1	±50+3%	ppm
PM2.5	0-999	1	±10F.s	Ug/m3
PM10	0-999	1	±10F.s	Ug/m3
barometric pressure	10-1200	0.01	±0.1	mbar
Illuminance	0-200000	1	±7%	Lux
O2	0-30	0.1	±3F.s	%
Ammonia	0-100	0.01	±3F.s	ppm
sulfuretted hydrogen	0-100	0.1	±3F.s	ppm
Noise	30-130	0.1	±1.5	dB
